EXAMPLE PROJECTS / REAL EXPORTS
Three synthetic properties, drawn in Planimble. Explore the geometry and download the same project in the formats your work needs.
PL—01 / Residential · two floors

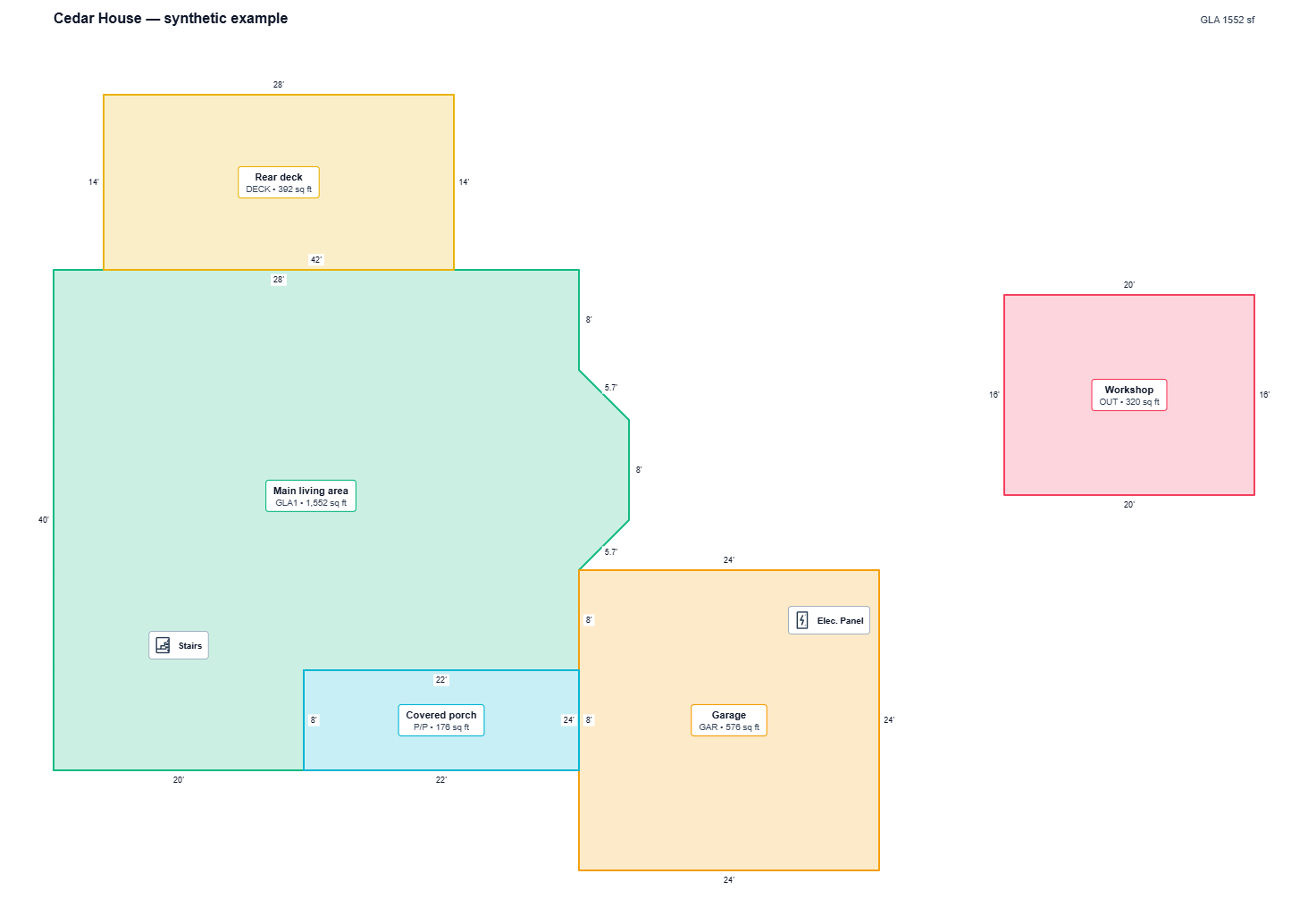

An angled bay, attached garage, rear deck and detached workshop. The upper floor stays on its own report sheet.
PDF and JSON contain both floors. SVG, DXF and PNG show the ground floor. Synthetic geometry, not a surveyed property. Area classes illustrate the software; apply the rules relevant to your assignment.
PL—02 / Commercial · open courtyard

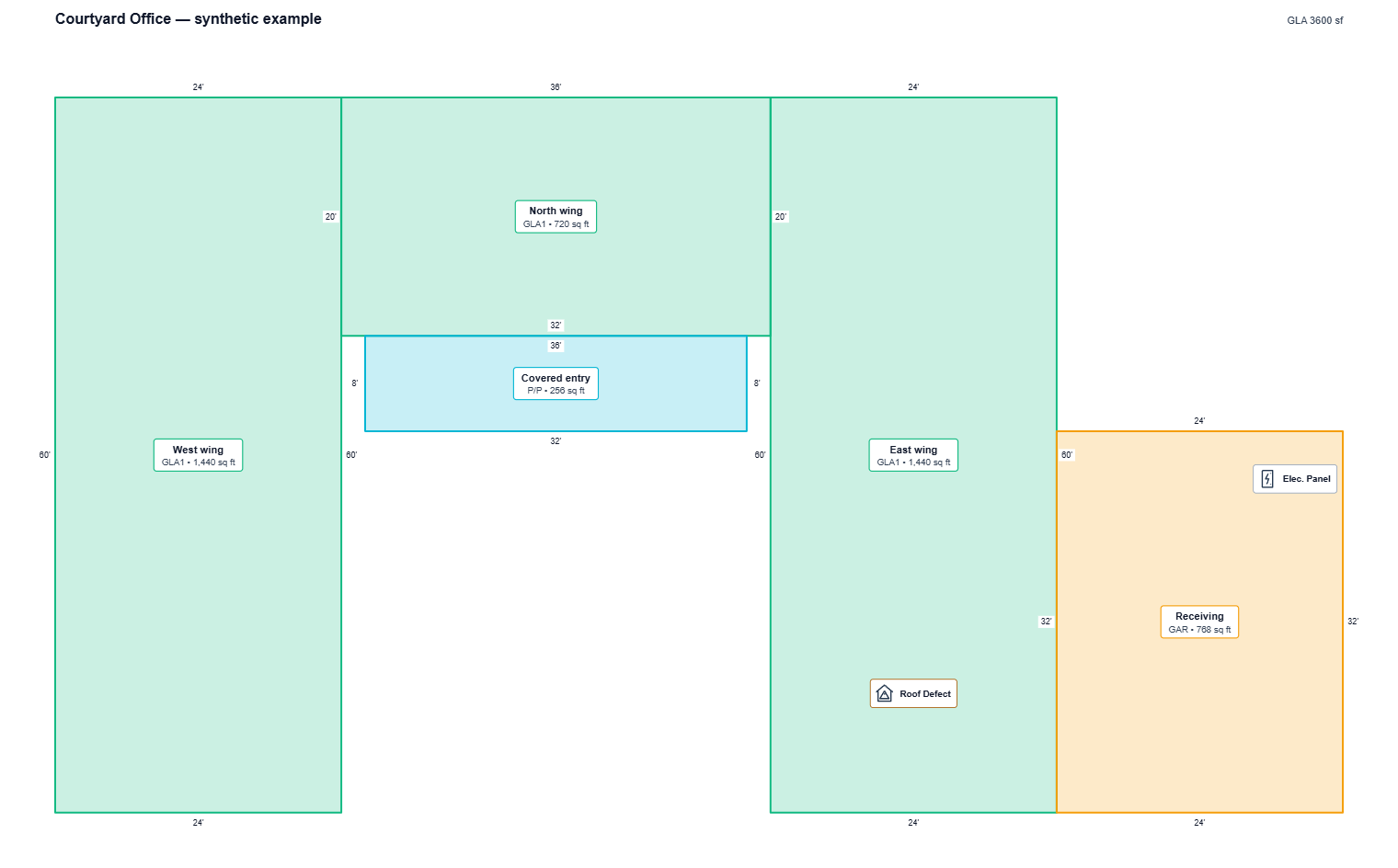

Three connected wings form a U-shaped footprint. A receiving bay and covered entrance remain separate area classes.
Every format comes from the same checked sample geometry. Synthetic geometry, not a surveyed property. Area classes illustrate the software; apply the rules relevant to your assignment.
PL—03 / Mixed geometry · curved wall

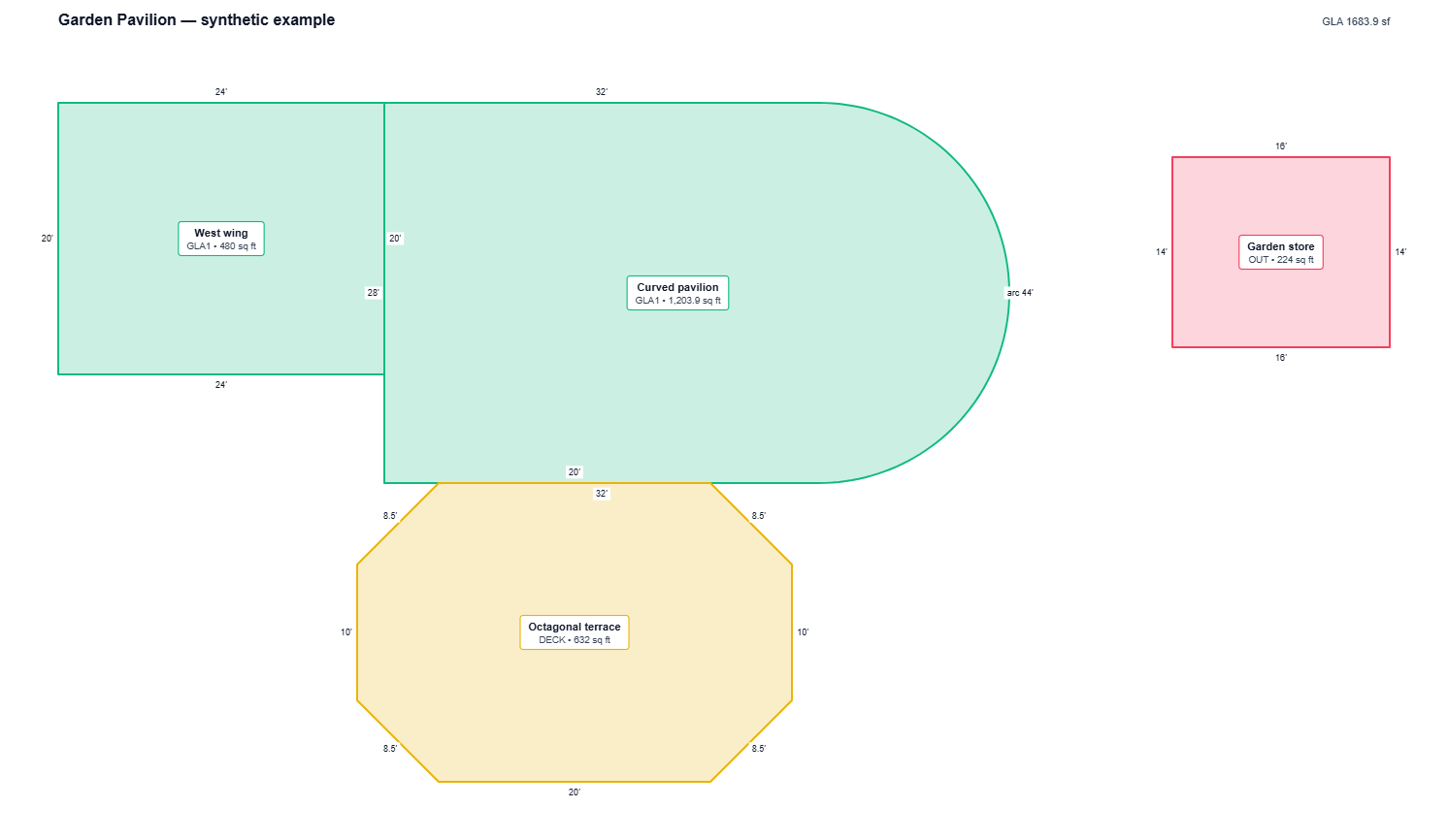

A semicircular pavilion joins a rectangular wing, with an octagonal terrace and a detached garden store.
Every format comes from the same checked sample geometry. Synthetic geometry, not a surveyed property. Area classes illustrate the software; apply the rules relevant to your assignment.
The Planimble JSON retains dimensions, area classes and floors as editable data for integration workflows. PDF is the finished report. See the developer guide for loading geometry through the SDK and API.
